DANCO’S Side dump
trailers & TRUCK BODIES

Ag related trailers and truck bodies manufactured by DANCO Trailers Inc. in Turlock, CA

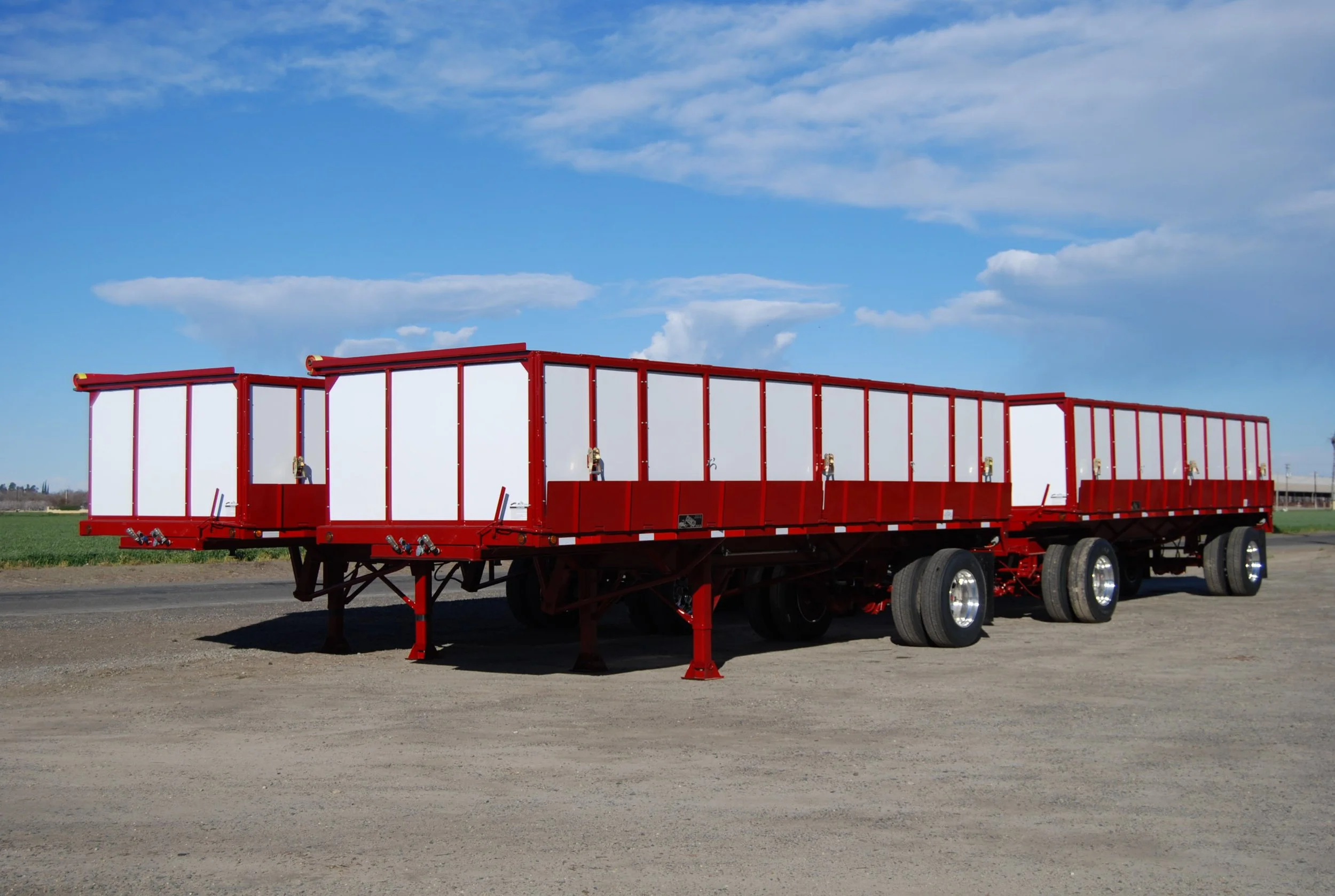

Side Dump Semi & Pull Trailers

Features

  • "I" Beam & Tubing main frame with high strength bottom strap & reinforced rub-rail bed with tubing cross-members at the hinge points which maintains rigidity while dumping, resulting in a minimum of flex or uneven rise.

  • Special 4 stage (65" stroke w/29" closed eye centers) telescopic cylinders with cup seal pistons, 32,000 lb. Capacity per trailer at 1500 PSI.

  • Front & rear tapered ends on racks releases load as dump rises preventing hangups and facilitating faster off loading.

  • Top hinged doors with 16" steel flap latch extends bed on dump side keeping load as far as possible from trailer & tires.

  • Automatic latch opens doors as bed is lifting allowing driver to remain in the safety of the cab during dumping operation.

Specifications

  • Hutch Under-mount Weld-On Suspension

  • Jost Two-Speed Landing Legs with Sand Shoes

  • 23,000 lbs. Axles w/7" Brake, 71.5" Track, 10 hole Hub Pilot, Outboard Drums,

  • Steel Center Brace & Divider

  • Western Unit Turntable & Special DANCO Sub-Frame

  • Holland PH550 Air Shock-less Hitch

  • Premier #8 Draw-bar Eye

  • Truck-Lite Sealed Light Harness System & Rubber-mount Lights

  • Standard Steel Frame

  • 1/2" MDO or Fiberglass Reinforced Siding Options

  • 4' or 5' High Racks Standard, Other Heights Optional

  • Special 1 1/8" MDO Plywood Flooring, Tongue & Groove

  • DANCO Standard are dumped from Wet Line Hydraulic Kit on Truck

  • Approx. Weight w/Tires & Wheels

    • 4' Racks Semi 8,000 lbs Pull, 9,700 lbs

    • 5' Racks Semi ~ 8,700 lbs, Pull ~ 10,400 lbs

  • King Pin Setting ~ 33"

  • Rear Axle Setting ~ 39"

  • Drawbar ~ 5'5" Between Trailers

  • Cubic Capacity (flat load) per Trailer 4' Racks ~ 27.5 - 5' Racks ~ 34 Yards
